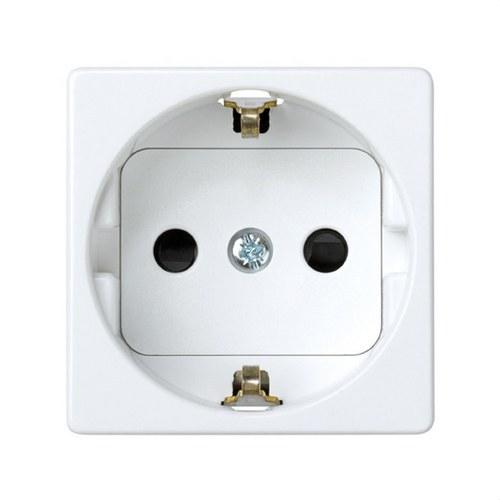

Schuko Socket Base 16 A 250V with Safety Device and Screw Terminal White Simon 27 Play

The Schuko socket outlet 16A 250V with safety device and screw terminal connection from the Simon 27 Play series is a reliable, safe, and versatile solution, designed for electrical installations in homes, offices, and buildings where safety and durability are top priorities.

Its Schuko format with lateral grounding ensures compatibility with European standards, offering convenient and safe use. It is designed to support a current of 16 A and a voltage of 250 V~, making it suitable for a wide range of electrical applications in both residential and professional environments.

One of its main added values is the inclusion of a child protection device, integrated into the socket covers, which prevents the insertion of objects into the electrical contacts and increases safety in environments with children.

Its white finish design allows for discreet and elegant integration into any type of décor, adapting to multiple interior styles. Additionally, it is compatible with a wide range of frames from the Simon series:

• Simon 27 Play
• Simon 27 Neos
• Simon 27 Scudo
• Simon 27
• Simon 27 Centralizaciones
• Simon 44 Aqua

This socket outlet is made from high-quality materials, including metal components with halogen-free thermoplastic insulation and a thermoset trim, ensuring a high level of resistance and safety under demanding conditions, including high temperatures.

Its screw terminal connection system allows for secure and firm wiring installation, supporting cable sections up to 2.5 mm². The insertion-type mechanism enables simple and efficient installation.

Regarding installation, this socket is compatible with both surface and flush mounting, offering great flexibility for new builds or renovations. It is compatible with universal, American, and centralization flush-mounting boxes.

Main technical features:

• Type: Schuko socket outlet with lateral grounding
• Current: 16 A
• Voltage: 250 V~
• Format: 1 element
• Finish: White
• Connection type: Screw terminal
• Mechanism type: Insertion
• IP rating: IP21
• Dimensions: 45 x 45 mm
• Operating temperature: 5 to 40 ºC
• Storage temperature: -25 to 50 ºC

Compatibility and installation:

• Installable horizontally and vertically
• Compatible with Simon 27 and related frames
• Supports 15 mm wire stripper
• Accepted cable section: up to 2.5 mm²

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive products
• Avoid cleaners with chlorine

A socket outlet that combines safety, reliability, and ease of installation, designed to meet the real needs of any modern electrical installation without complications.
