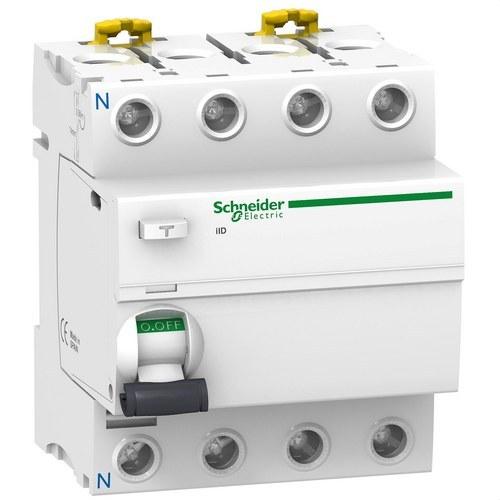

IDD Differential 4P 25A 30mA Class AC

Technical Description

Schneider Electric Acti9 iID 4-pole residual current circuit breaker for the protection of people and installations against earth leakage currents.

Applications and Benefits

Suitable for three-phase residential, commercial, or small premises electrical panels where high-sensitivity residual current protection is required.

Technical Features

• Range: Acti9 iID.
• Number of poles: 4P.
• Rated current: 25 A.
• Residual current sensitivity: 30 mA.
• Residual current protection class: AC.
• Designed to protect against electric shock from direct and indirect contact.
• Modular format for DIN rail mounting.

Installation

Must be coordinated with the downstream circuit breakers and with the installation grounding scheme.
