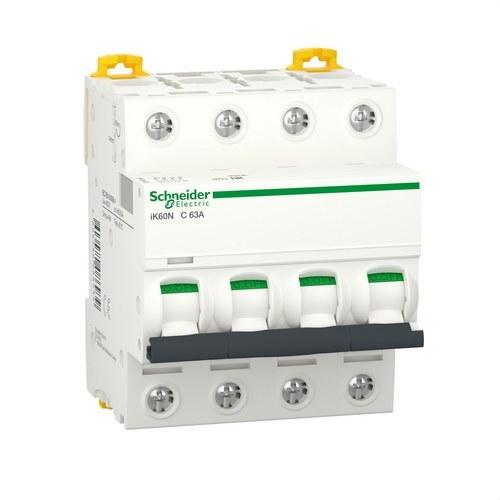

IK60N Circuit Breaker 4P 63A Curve C 6kA

Technical Description

Schneider Electric Acti9 iK60N thermal-magnetic circuit breaker for protecting low-voltage circuits against overloads and short circuits. The 4P configuration provides protection for three-phase installations with four poles.

Applications and Benefits

Recommended for advanced residential distribution boards, tertiary applications, or small professional environments where reliable four-pole protection is required.

Technical Features

• Range: Acti9 iK60N.
• Number of poles: 4P, with 4 protected poles.
• Rated current: 63 A.
• Tripping curve: C.
• Breaking capacity: 6 kA according to EN/IEC 60898-1.
• Thermal-magnetic tripping technology.
• Modular DIN rail mounting.

Installation

The rated current selection must be verified according to cable cross-section, load type, required breaking capacity, and applicable regulations.
