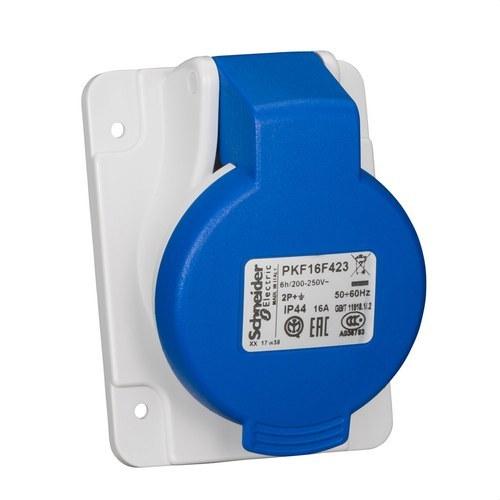

65X85 Flush-Mount Angled Socket Base 16A 2P+E 200-250V IP44 Blue

Technical description

Schneider Electric PK PratiKa angled flush-mount socket base for industrial outlets. Its 2P+E 16 A configuration and IP44 protection make it suitable for single-phase connections in professional environments.

Applications and advantages

Recommended for workshops, light industry, temporary installations, auxiliary panels, and areas where a robust industrial outlet protected against splashes is required.

Technical features

• Range: PK PratiKa.
• Type: angled flush-mount socket/base with screw connection.
• Poles: 2P+E.
• Rated current: 16 A.
• Operating voltage: 220-250 V AC / 230 V AC.
• Protection rating: IP44.
• Industrial blue color for identification of single-phase voltage.
• Angled format to facilitate plug connection.

Dimensions and physical data

• Base plate dimensions: 65 x 85 mm.

Installation

Must be installed in a compatible enclosure or box, respecting the protection rating of the complete installation.
